PINSHENG AUTOMATIC EPS SHAPE MOULDING MACHINE

Ask Lasest Price
Brand Name :	PIN SHENG
Model Number :	PSSM
Price :	negotiation
Payment Terms :	T/T LC
Supply Ability :	10pcs per month
Delivery Time :	6-10days

Add to Cart

Product Details
Company Profile

PINSHENG AUTOMATIC EPS SHAPE MOULDING MACHINE

1. Product Introduction

We are providing qualify EPS moulding machine to worldwide clients, our machines are loved by customers because of their accuracy and high production efficiency.

2. Product Parameter (Specification)

1.Mechanical structure	All the steel plate of our EPS moulding machine is welded with thick steel plate , all the formwork is tempered at high temperature and shot peening at high pressure . It has high strength and high surface hardness. All templates are processed by CNC to ensure accuracy
2.Steam System	Our EPS moulding machine provides long range control system reducing valve for stabilizing flow, with control accuracy ±0.2 Bar.
3.Electrical control	Our EPS moulding machine adopts all worldwide well-known components, such as Taita touch screen,Low-voltage electrical appliances are with the brand Schneider. Through steam pressure,main steam pressure,demoulding,air cooling,and pressurized feeding all adopt remote pressure regulating system,valves open and close according to the set pressure ratio, it is very easy to operate.
4.Hydraulic System	A digital encoder of the EPS Moulding machine is used to control the stroke distance of mold opening and clamping,it can keep the safety protection function of the mechanical,hydraulic and electrical tripe interlocking so as to meet the safety standard.

3.Product Feature And Application

EPS moulding machine is used to produce all kinds of EPS product,as long as equipped with suitable molds, our machines can produce the products you want

Item	Unit	PSSM120B	PSSM140B	PSSM160B	PSSM170B	PSSM180B	PSSM200B
Mould Dimension	mm	1200X1000	1400X1200	1600X1400	1700X1500	1800X1600	2000X1800
Max Product Dimension	mm	1050X850X350	1250X1050X350	1450X1350X350	1550X1350X350	1650X1450X350	1850X1650X350
Stroke	mm	110-1360	170-1420	170-1420	170-1420	120-1370	40-1290
Steam Inlet	mm	DN80	DN100	DN100	DN100	DN100	DN100
Steam Consumption	t/t	(10-15t)Steam of 1t Material
Cooling Water inlet	mm	DN80	DN80	DN80	DN80	DN80	DN100
Cooling Water Consumption	kg/cycle	45-130	55-150	60-180	70-190	90-200	100-220
Compressed Air Consumption	m³/cycle	1.5	1.8	2	2.2	2.4	2.6
Vacuum Pump Capacity	m³/h	165	230	230	280	280	280
Drainage Port	mm	DN125	DN150	DN150	DN150	DN150	DN150
Connected Load	kw	11	13	17	17	17	20
Outside Dimension	mm	4600X2100X3600	4600X2300X3800	4600X2500X4000	4600X2600X4100	4600X2700X4200	4600X2900X4400
Weight	kg	4500	5000	6000	6500	7000	7500
Cycle Time	s	60-100	60-120	70-160	80-170	80-180	90-180

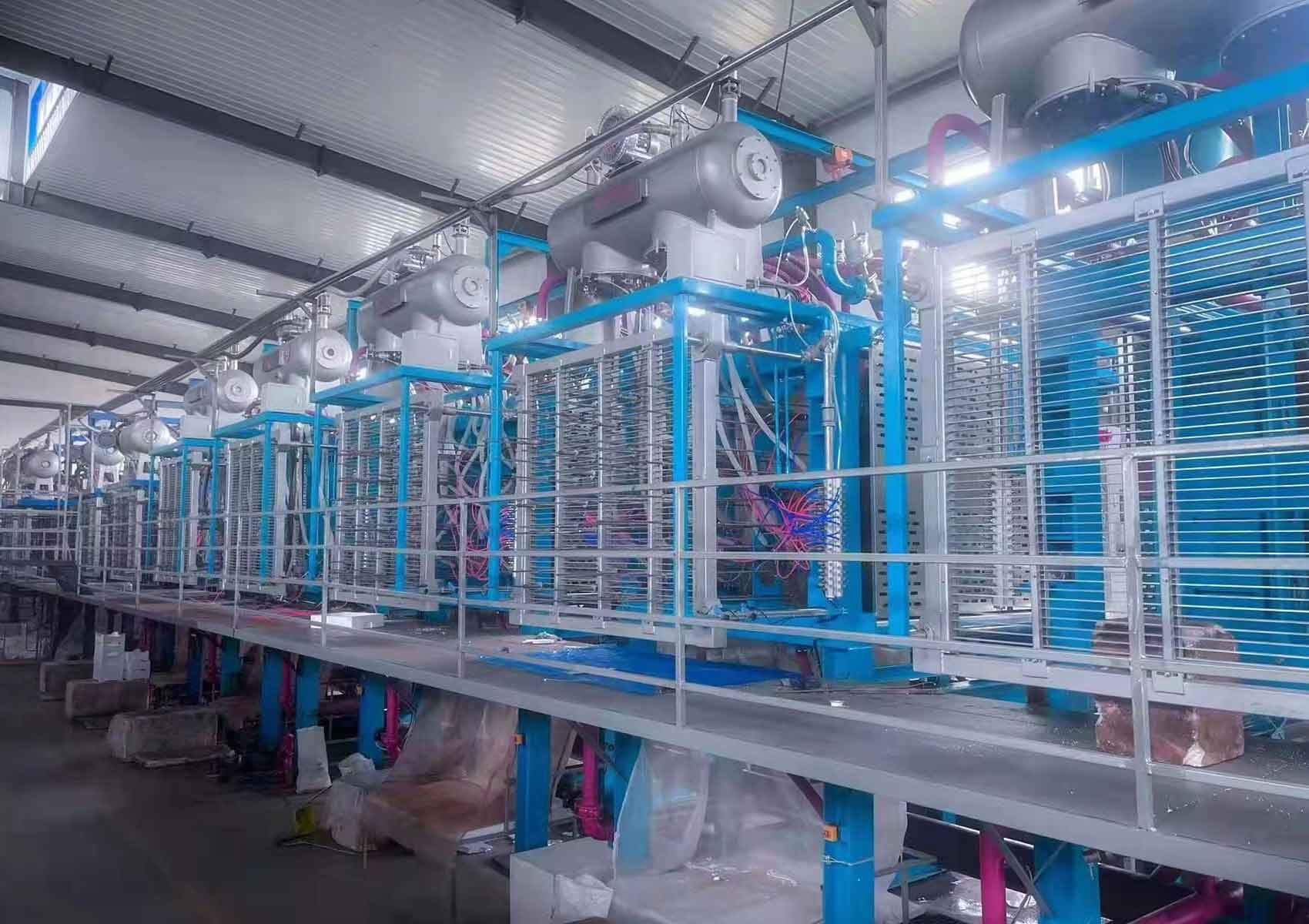

PINSHENG AUTOMATIC EPS SHAPE MOULDING MACHINE

PINSHENG AUTOMATIC EPS SHAPE MOULDING MACHINE
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.

2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied

3. Are you a trading company or a manufacturer?
We are manufacturer.

4. How long is your delivery time?
Normally delivery time is 30~45 days.

5. How many years have your company made this kind of equipment?
More than 10 years.

6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.

7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation

8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.

9. Can you can design the equipment according to our size?
Yes, it is acceptable

10. How many production lines in your factory?
We have total 10 production line.
