Name: PFED PFE Machine Spare Parts Hydraulic Single Or Double Pump Cartridge
Brand: PIN SHENG
Price: 1 USD

Add to Cart

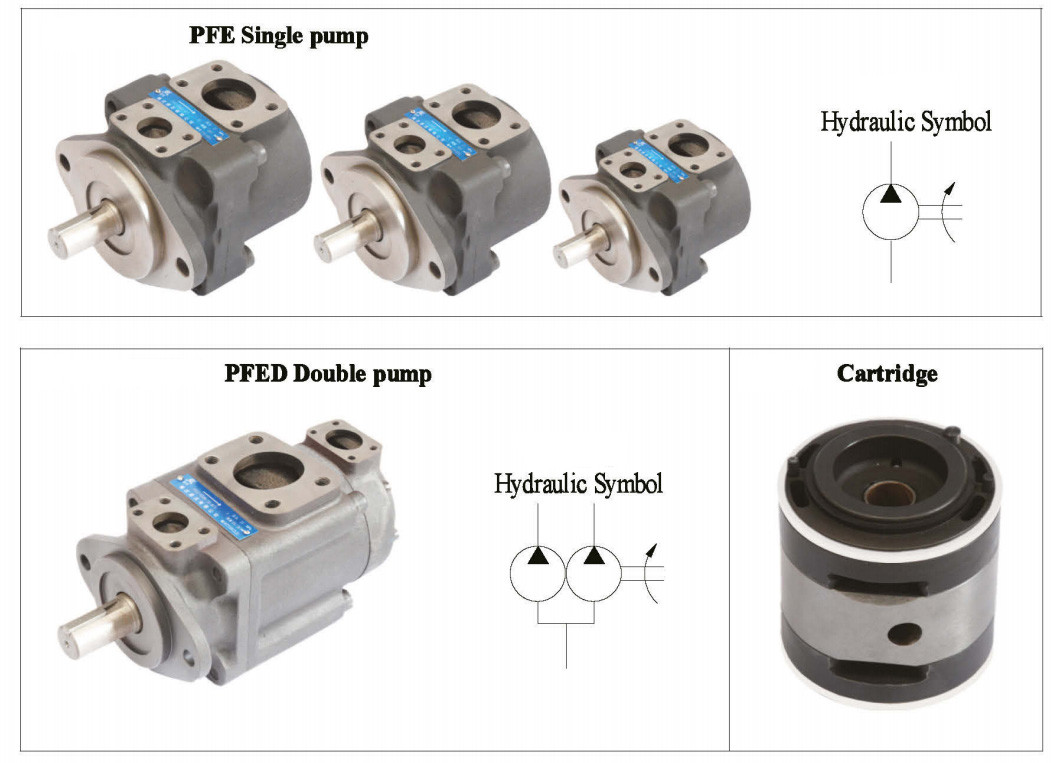

Hydraulic Single or Double Pump and Pump Cartridge

PFE Series Pin Type Vane Pump

MODEL CODE

PFED-	4131	045/	022/	1	D	TO
PFED series fixed displacement vane pump	series	double pump larger displacement volume side geometric displacement(ml/r)	double pump smaller displacement volume side geometric displacement(ml/r)	shaft type	direction of rotation(viewed from shaft end)	port orientation
PFE double pump series	32	16,22,28,36,44	5,6,8,10,12,16	1-cylindrical type (standard) 2-cylindrical type(ISO/DIS3019) 3-cylindrical type (high torque) 5-splined type	D:CW S:CCW	see port orientation table {inlet and two outlet ports can be oriented in any of thirty two relative positions :To,VG
	42	29,37,45,56,70,85	5,6,8,10,12,16
	43	29,37,45,56,70,85	16,22,28,36,44
	52	90,110,129,150	5,6,8,10,12,16
	53	90,110,129,150	16,22,28,36,44
	54	90,110,129,150	29,37,45,56,70,85

PFE-	41	045/	1	D	TO
PFE series fixed displacement vane pump	series	single pump geometric displacement (ml/r)	shaft type	direction of rotation(viewed from shaft end)	port orientation
PFE sigle pump series	21	5,6,8,10,12,16	1-cylindrical type (standard) 2-cylindrical type(ISO/DIS3019) 3-cylindrical type (high torque) 5-splined type	D:CW S:CCW	see port orientation table {inlet and outlet ports can be oriented in any of four relative positions :T,V,U,W
	31	16,22,28,36,44
	41	29,37,45,56,70,85
	51	90,110,129,150
	61	160,180,200,224,250
	22	8,10,12
	32	22,28,36,
	42	45,56,70
	52	90,110,129

PFED PFE Machine Spare Parts Hydraulic Single Or Double Pump Cartridge
