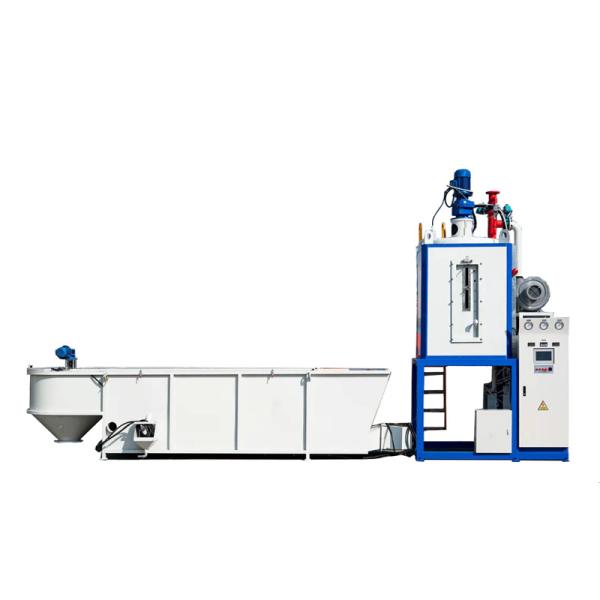

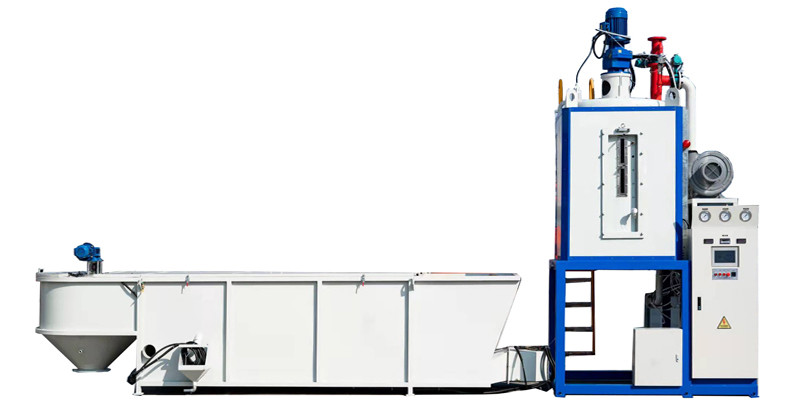

Latest Style Automatic Bath EPS Pre Expander
The Latest Style Automatic Bath EPS Pre Expander machine can make the foaming deviation reach +-0.05kg, double
protection to prevent the material from agglomerating in the
furnace, the foaming proportion is more stable, more uniform
particles
Main features:
1. Beautiful appearance design, the main structure adopts gb square
steel after welding spray paint, spray paint color can be
customized according to customer requirements.
2. The main power motors are made of Famous Chinese brands with
long service life.
3. The control system is closed loop controlled by Mitsubishi FX5U
series PLC, which is accurate and stable
| Item | Unit | PSPEB-A90 | PSPEB-A130 | PSPEB-A150 |
| Expansion Chamber | Diameter | mm | ∅900 | ∅1300 | ∅150 |
| Volume | m³ | 0.85 | 2.4 | 5.4 |
| Useable volume | m³ | 0.6 | 1.6 | 4.5 |
| Steam | Inlet | mm | ∅50 | ∅65 | ∅100 |
| Consumption | kg/cycle | 2-4 | 10-12 | 18-20 |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Compressed air | Inlet | mm | ∅40 | ∅40 | ∅50 |
| Consumption | m³/cycle | 0.3-0.4 | 0.7-0.9 | 0.5-0.8 |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Drainage | Drainage port | mm | ∅100 | ∅100 | ∅150 |
| Condensation | mm | ∅40 | ∅100 | ∅50 |
| Connected load | Installing power | Kw | 17 | 21 | 40 |
| Density | g/L | 12-90 | 12-30 | 12-30 |
| Out side dimensions | % | ±1.5 | ±2 | ±2 |
| Material conveying | mm | ∅150 | ∅150 | ∅200 |
| Overall size (LXWXH) | mm | 6500X2000X4900 | 7400X3000X4500 | 11000X2850X6100 |
| Weight | kg | 2500 | 4250 | 8000 |
| Room height required | mm | 5000 | 6000 | 7000 |
| Productivity | kg/h | 12g/L 240 | | |
| kg/h | 18g/L 350 | 12g/L 530 | 12g/L 1000 |
| kg/h | 25g/L 480 | 15g/L 670 | 15g/L 1300 |
| kg/h | 32g/L 540 | 20g/L 920 | 18g/L 1800 |
| kg/h | 50g/L 600 | 30g/L 1220 | 25g/L 2400 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which
professionally producing EPS/EPP/ETPU machine. Another factory
locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both
two factories are pretty close to the Shanghai port for easiest
transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and
the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our
machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they
will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic
situation.
We will try our best to assist in case wecannot send technician in
time. We will also conduct video connections with guests to teach
them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
